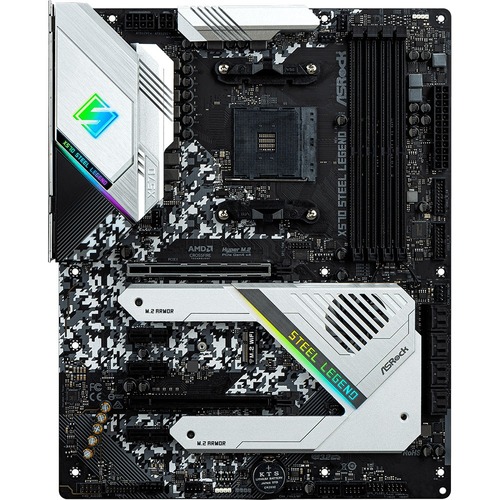

ASRock X570 STEEL LEGEND Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 8 x USB 3.1 Port - HDMI - 1 x RJ-45 - 8 x SATA Interfaces X570 STEEL LEGEND

ASRock X570 STEEL LEGEND Desktop Motherboard - AMD Chipset - Socket AM4 - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 8 x USB 3.1 Port - HDMI - 1 x RJ-45 - 8 x SATA Interfaces

Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors 10 Power Phase Design Supports DDR4 4666+ (OC) 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi AMD Quad CrossFireX™ and CrossFireX™ Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4) 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear) Intel® Gigabit LAN ASRock Polychrome SYNC TOUGH AS STEEL TRUE LEGENDSteel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task - with style! REVOLUTIONARY X570 MOTHERBOARDS : Your PC TransformedStyle . More reliable. Design that delivers. STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0 The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock''s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Dual Hyper M.2 For SSD Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Flexible Integrated I/O Shield Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. 10 POWER PHASE DESIGN Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance. Dual USB 3.2 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. PREMIUM 60A POWER CHOKE ASRock''s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Post Status Checker An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: X570
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported: Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 5 PRO, Ryzen 7 PRO, Ryzen 3 PRO, Ryzen 9
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4400 MHz, 4300 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3800 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 4200 MHz, 4666 MHz, 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 8
Number of USB 3.2 Ports: 8
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 4
Form Factor: ATX
Width: 12"
Depth: 9.6"
