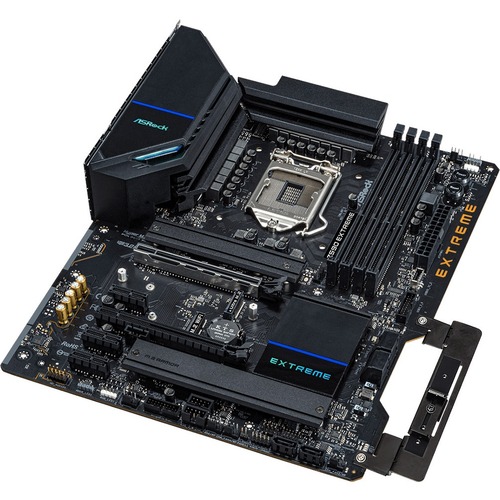

ASRock Z590 Extreme Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots -

ASRock Z590 Extreme Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors 14 Phase Dr.MOS Power Design Supports DDR4 4800MHz (OC) 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)2 x Ultra M.2 (PCIe Gen3 x4 & SATA3) 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)Rear USB 3.2 Gen2 Type A+C (10Gb/s)6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)6 x USB 2.0 (2 x Rear, 4 x Front) Dragon 2.5 Gigabit LAN, Intel® Gigabit LAN ASRock Graphics Card Holder (Patent Pending) NEW TONES OF MINIMALIST The simplicity and minimalist tones make EXTREME stands out from other motherboards, embracing the feelings and thoughts of all DIYers. Offering way more than what normal enthusiasts or gamers bargained for. Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Premium 60A Power Choke Compared to traditional chokes, ASRock''s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. 14 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. ASRock Graphics Card Holder | (Patent Pending) Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place. USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you''ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. Intel® LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z590
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4800 MHz, 4666 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Product Color: Matte Black
Form Factor: ATX
Width: 12"
Depth: 9.6"
Brand Compatibility: Intel
