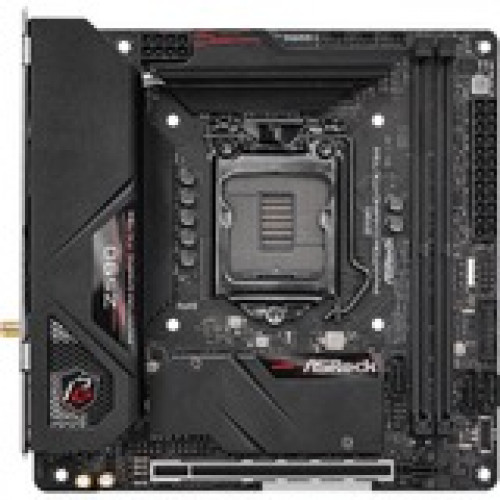

ASRock Z590 Phantom Gaming-ITX/TB4 Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Mini ITX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM -

ASRock Z590 Phantom Gaming-ITX/TB4 Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Mini ITX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ax - HDMI - DisplayPort - 3 x SATA Interfaces

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors Supports DDR4 4266MHz (OC) 1 PCIe 4.0 x16 Graphics Output Options: HDMI, DisplayPort, Intel® Thunderbolt™ 4 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 3 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 1 Intel® Thunderbolt™ 4 Type-C 5 USB 3.2 Gen2 10Gb/s (Rear) 2 Front USB 3.2 Gen1 5Gb/s, 1 Front USB 3.2 Gen2x2 Type-C 20Gb/s Killer E3100G 2.5G LAN, Intel® Gigabit LAN Killer AX1675x 802.11ax(WiFi 6E) + BT 5.2 Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It''s all about bringing a new gaming experience to gamers! Thunderbolt™ 4/USB 4.0 Type-C Thunderbolt™ 4/USB 4.0 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 5 Thunderbolt™ devices with a single wire, and even provides PD 2.0 with 9V@3A (27W).Just experience the world''s fastest connectivity with Thunderbolt™ ready motherboards! Clever Access Memory Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Killer™ Ethernet E3100 + Wi-Fi 6E AX1675x The Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. Killer DoubleShot™ Pro Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link. Killer DoubleShot™ Pro Benefits: ? Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.? Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.? Maximum Control: Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don''t interfere with higher priority apps.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z590
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Number of Memory Slots: 2
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4266 MHz, 3200 MHz, 2933 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 5
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of Thunderbolt 4 Ports: 1
Number of SATA Interfaces: 3
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 3
Product Color: Matte Black
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Brand Compatibility: Intel
