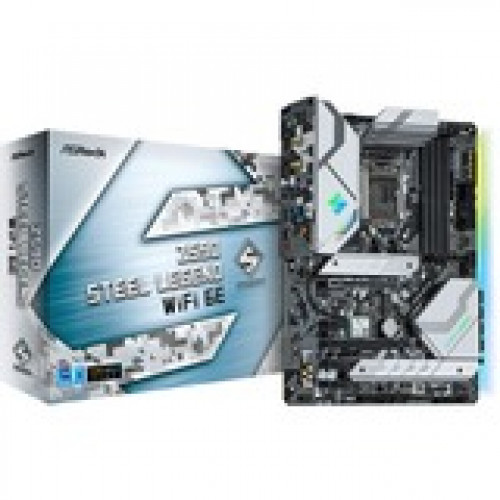

ASRock Z590 Steel Legend WiFi 6E Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Me

ASRock Z590 Steel Legend WiFi 6E Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ax - HDMI - DisplayPort - 6 x SATA Interfaces

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors 14 Phase Dr.MOS Power Design Supports DDR4 4800MHz (OC) 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)2 x Ultra M.2 (PCIe Gen3 x4 & SATA3) 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)Rear USB 3.2 Gen2 Type A+C (10Gb/s)6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)6 x USB 2.0 (2 x Rear, 4 x Front) Dragon 2.5 Gigabit LAN Intel® WiFi 6E (802.11ax) + BT 5.2 ASRock Graphics Card Holder (Patent Pending) Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Style In Details | Featuring sturdy components as well as more elaborately styled pieces | 14 Power Phase Design Designed with a 14 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Clever Access Memory Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. ASRock Graphics Card Holder | (Patent Pending) Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you''ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. Wi-Fi 6E 802.11ax WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z590
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4800 MHz, 4666 MHz, 2933 MHz, 2666 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Intel RST: Yes
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Product Color: Matte Black
Form Factor: ATX
Width: 12"
Depth: 9.6"
Brand Compatibility: Intel
