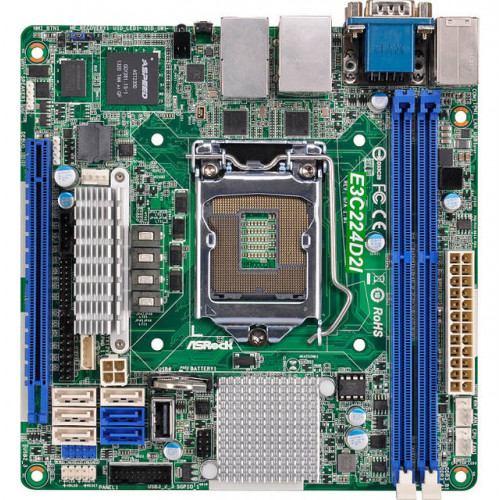

ASRock Rack E3C224D2I LGA1150/ Intel C224/ DDR3/ SATA3&USB3.0/ V&2GbE/ Mini-ITX Server Motherboard

Specifications

• Mfr Part Number: E3C224D2I
• CPU: LGA1150
  • Supports Intel Xeon E3-1200 v3 Series & Haswell i3 Processors
  • Supports Hyper-Threading Technology
• Chipset: Intel C224
• Memory: 2x 240pin DDR3-1600/1333 DIMM Slots, Dual Channel, ECC, Unbuffered, Max Capacity of 16GB
• Slots: 1x PCI-Express 3.0 x16 Slot
• SATA: 4x SATA3 Ports, 2x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2300 Graphics w/ 16MB DDR3 Video Memory
• LAN: 2x Intel i210 Gigabit Ethernet Controllers, 1x Realtek RTL8211E for Dedicated Management GLAN
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via headers, 1 Type A), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Power Connector: 1x 24pin ATX Power Connector, 1x 4pin ATX Power Connector
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
