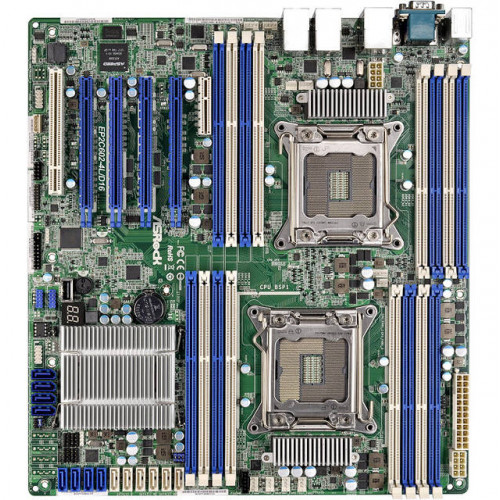

ASRock Rack EP2C602-4L/D16 Dual LGA2011/ Intel C602/ DDR3/ SATA3/ V&4GbE/ SSI EEB Server Motherboard

Specifications

• Mfr Part Number: EP2C602-4L/D16
• CPU: Dual LGA2011
  • Support Intel Xeon E5-1600/ 2600/ 4600 & v2 Series Processors (E5-1600 Supports Single Socket)
  • Support Hyper-Threading Technology
  • 6+1 Power Phase Design
• Chipset: Intel C602
• Memory: 16x 240pin DDR3-1600/ 1333/ 1066 DIMM Slots, Quad Channel, Supports up to 512GB REG/Load Reduced Memory or up to 128GB ECC/Non-ECC Unbuffered Memory
• Slots: 4x PCI-Express 3.0 x16 Slots (one runs at x0/x8, one runs at x16/x8), 1x PCI-Express 3.0 x4 Slot, 1x PCI Slot
• SATA: 6x SATA3 Ports, Two Support RAID 0, 1, 5, 10, Four Support RAID 0, 1, 10; 8x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video: Aspeed AST2300 Graphics w/ 16MB DDR3 Video Memory
• LAN: 4x Intel 82574L Gigabit Ethernet Controllers; 1x Realtek RTL8211E for Dedicated Management GLAN
• Ports: 7x USB 2.0 Ports (2 rear, 4 via headers, 1 Type A), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Power Connector: 1x 24pin ATX Power Connector, 2x 8pin ATX Power Connectors
• Form Factor: SSI EEB, 12.0 x 13.0 inch / 30.5 x 26.7 cm
