ATEN DVI Dual Link Extender with Audio-TAA Compliant - 1 Input Device - 1 Output Device - 19.69 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - RoHS, WEEE Compliance VE602

ATEN DVI Dual Link Extender with Audio-TAA Compliant - 1 Input Device - 1 Output Device - 19.69 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - RoHS, WEEE Compliance

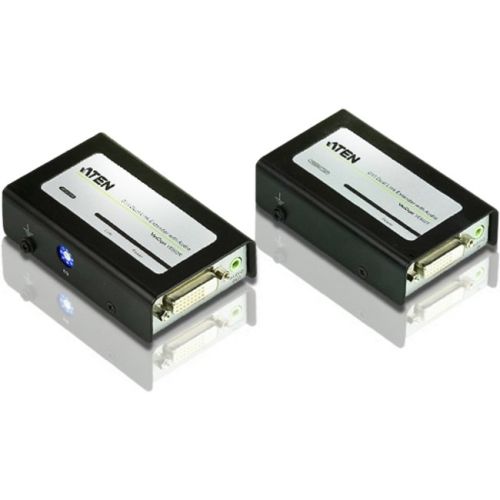

The VE602 DVI Dual Link Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE602 incorporates ATEN''s technology that allows A/V signals to be transmitted over one Cat 5e cable. It uses ATEN default EDID, but is able to learn and save the EDID configuration of the remote display. For dual link video signals, simply use a second Cat 5e cable. With support for stereo audio and popular widescreen video formats, the VE602 provides crystal-clear image and sound quality for installations where remote DVI video displays are required. More from the Manufacturer

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 19.69 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
DVI In: Yes
DVI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of DVI Inputs: 1
Number of DVI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 5.3 V DC
Product Material: Metal
Transmitter Height: 0.94"
Transmitter Width: 2.20"
Length: 3.6"
Transmitter Weight (Approximate): 12.35 oz
Package Contents: 1 x VE602T DVI Dual Link Extender with Audio, 1 x VE602R DVI Dual Link Extender with Audio, 2 x Power Adapters, 1 x Mounting Kit, 1 x User Instructions
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
