ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B) - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable VE80

ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B) - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable VE80
Brand: ATEN
Part Number: VE802
MSRP: $408.99
Availability: 10 or more
Condition: New
Price: $340.06
Qty:     - OR -   Add to Wish List
Add to Compare
ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B) - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

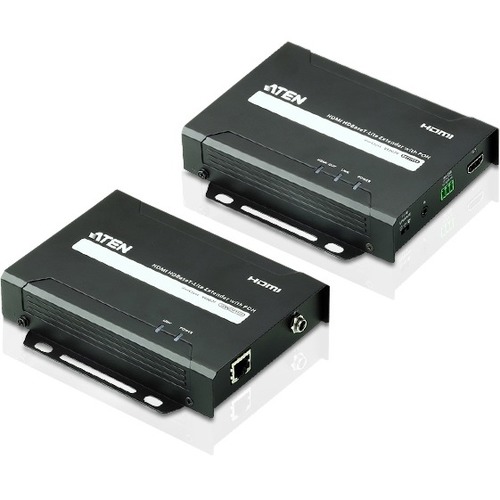

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality. More from the Manufacturer


Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Transmitter Height: 1.18"
Transmitter Width: 5.53"
Transmitter Depth: 4.84"
Receiver Height: 1.18"
Receiver Width: 5.53"
Receiver Depth: 4.84"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 15.52 oz
Receiver Weight (Approximate): 1.01 lb
Package Contents:
    1 x Transmitter, 1 x Receiver, 1 x Power Adapter (VE802T), 1 x IR Transmitter, 1 x IR Receiver, 2 x Terminal Blocks, 1 x User Instructions

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
