ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant - 1 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable V

ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant - 1 Input Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

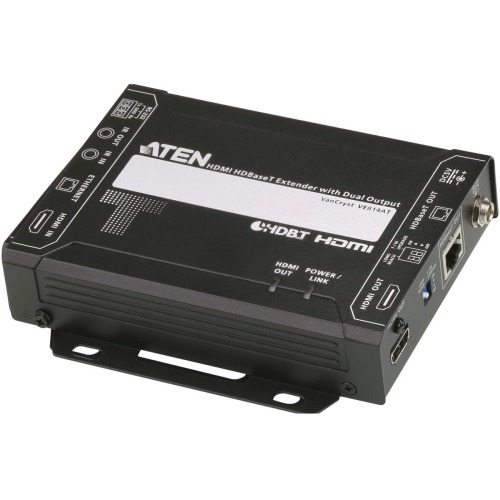

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m. The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable. The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 492.13 ft
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Transmitter Height: 1.14"
Transmitter Width: 3.98"
Transmitter Depth: 5.35"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 15.87 oz
Package Contents:

HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A), 1 x RS-232 Terminal Block, 1 x Power Adapter, 1 x User Instructions

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
