ATEN HDMI USB Extender - 1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - WUXGA - 1920 x 1200 - RoHS, WEEE Compliance VE803

ATEN HDMI USB Extender - 1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - WUXGA - 1920 x 1200 - RoHS, WEEE Compliance

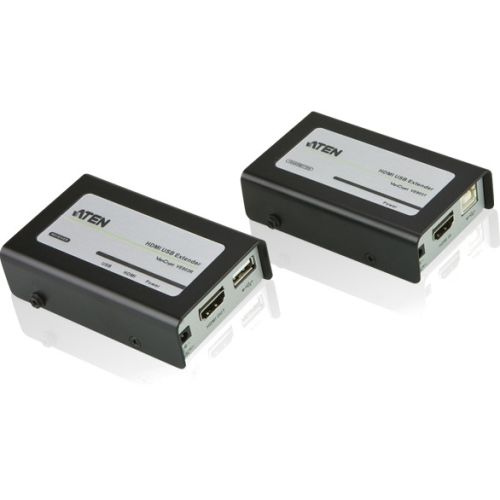

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit. The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application. More from the Manufacturer

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 131.23 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 5 V DC
Product Material: Metal
Transmitter Height: 0.91"
Transmitter Width: 1.24"
Length: 2.8"
Transmitter Weight (Approximate): 5.64 oz
Package Contents: 1 x VE803T HDMI USB Extender, 1 x VE803R HDMI USB Extender, 1 x Power Adapter, 1 x USB Cable (1.8 m), 1 x Mounting Kit, 1 x User Instructions
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: China
