ATEN Proxime CE770 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - Rack-mountable

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - Rack-mountable - RoHS, WEEE Compliance

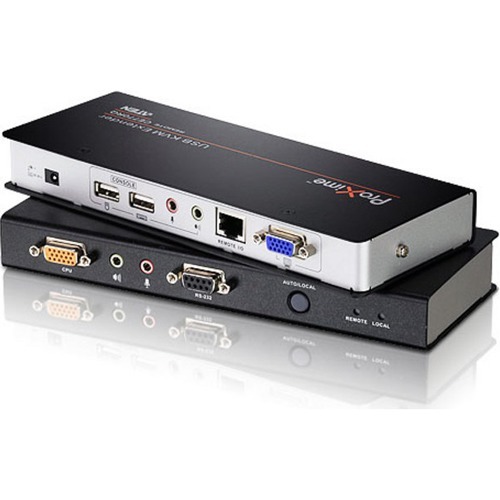

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender''s line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings. More from the Manufacturer

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 984.25 ft
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
USB: Yes
Headphone: Yes
Microphone: Yes
VGA: Yes
Proprietary Interface: Yes
Number of VGA Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 1.08 lb
Receiver Weight (Approximate): 1.06 lb
Package Contents: CE770 KVM Console/Extender, 2 x Power Adapter, 1 x Rack Mount Kit, 2 x Grounding Wires, 1 x User Manual, 1 x Quick Start Guide, 1 x USB KVM Cable (1.8m)
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
