ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant - 492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable CE820

ATEN USB HDMI HDBaseT 2.0 KVM Extender (4K@100 m)-TAA Compliant - 492.13 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable

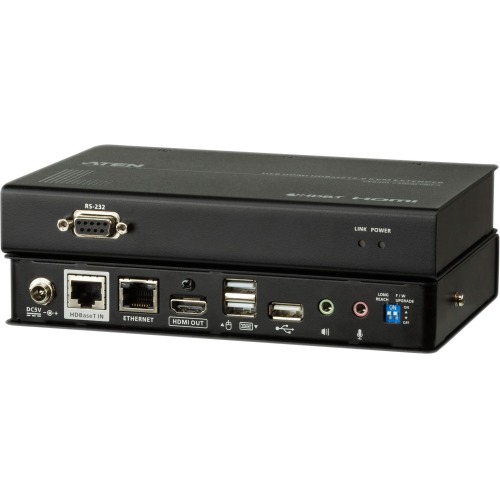

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Technical Specifications:
Connectivity Technology: Wired
Maximum Operating Distance: 492.13 ft
Graphic Mode: 4K
Maximum Video Resolution: 4096 x 2160
Network (RJ-45): Yes
USB: Yes
Headphone: Yes
Microphone: Yes
HDMI: Yes
Number of HDMI Ports: 2
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 4
Input Voltage: 5 V DC
Form Factor: Rack-mountable
Transmitter Height: 1.13"
Transmitter Width: 4.80"
Transmitter Depth: 7.17"
Receiver Height: 1.13"
Receiver Width: 4.80"
Receiver Depth: 7.17"
Transmitter Weight (Approximate): 1.43 lb
Receiver Weight (Approximate): 1.39 lb
Package Contents:

1 x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit), 1 x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit), 1 x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft), 2 x Power Adapters, 2 x Mounting Kits, 8 x Foot Pads, 1 x User Instructions

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
