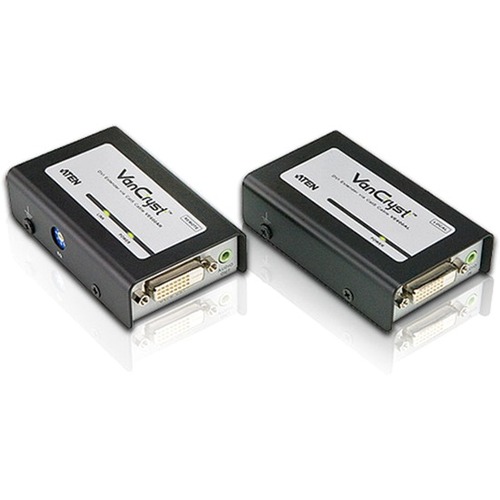

ATEN Video Extender - 1 Input Device - 3 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e VE600A

ATEN Video Extender - 1 Input Device - 3 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - WUXGA - 1920 x 1200 - Twisted Pair - Category 5e

The VE600A extends DVI-D video and audio up to 200 ft at 1080i or 130 ft at 1920 x 1200 and 1080p.The VE 600A uses two Cat5e cables to connect the local and remote units. It will pass video and audio with one cable [TDMS], but the second cable [DDC] must be used if your installation requires EDID information.There are no drivers or other software to install, simply connect the units to your video source and destination.

Warning: This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 3
Maximum Operating Distance: 200 ft
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
DVI In: Yes
DVI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of DVI Inputs: 1
Number of DVI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Input Voltage: 5.3 V DC
Product Material: Metal
Transmitter Height: 1"
Transmitter Width: 2.20"
Length: 3.6"
Transmitter Weight (Approximate): 1 lb
Package Contents: Video Extender, 2 x Power Adapters, 1 x Rack Mount Kit, 1 x User Guide, 2 x Grounding Wire
