ATEN Video Extender-TAA Compliant - 1 Input Device - 2 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - VGA, XGA, SVGA, UXGA, WUXGA - 1920 x 1200 - Twisted Pair - Category 5 - Rack-mountable - RoHS, WEEE Compliance VE150A

ATEN Video Extender-TAA Compliant - 1 Input Device - 2 Output Device - 492.13 ft Range - 2 x Network (RJ-45) - 1 x VGA In - 2 x VGA Out - VGA, XGA, SVGA, UXGA, WUXGA - 1920 x 1200 - Twisted Pair - Category 5 - Rack-mountable - RoHS, WEEE Compliance

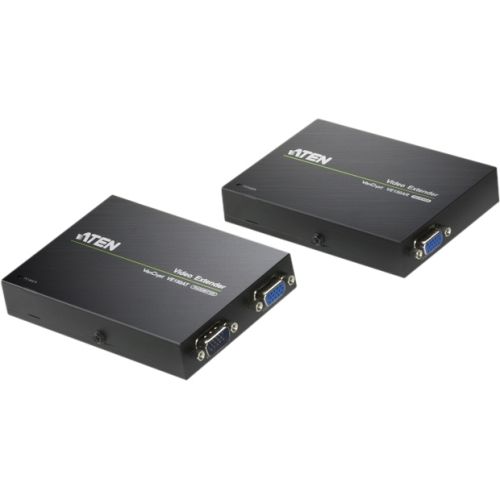

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 2
Maximum Operating Distance: 492.13 ft
Graphics Modes: VGA, XGA, SVGA, UXGA, WUXGA
Maximum Video Resolution: 1920 x 1200
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5
Input Voltage: 5.3 V DC
Product Material: Metal
Transmitter Height: 0.89"
Transmitter Width: 3.56"
Length: 5"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 8.47 oz
Package Contents: 1 x VE150AT Video Extender (Local unit), 1 x VE150AR Video Extender (Remote unit), 2 x Power Adapters, 1 x VGA Cable, 1 x Mounting Kit, 1 x User Instructions
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
