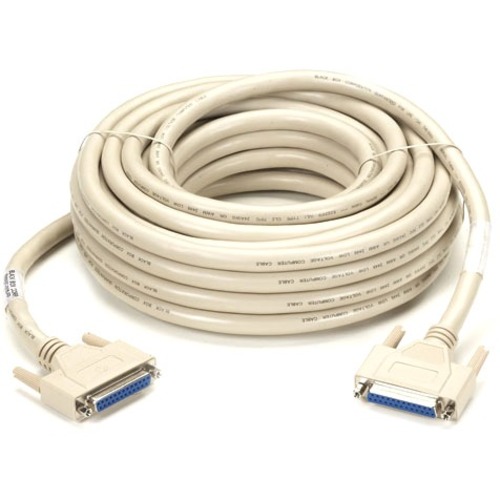

Black Box 75-ft RS232 Shielded Cable Metal Hood DB25 F/F 25Conductor - 75 ft Serial Data Transfer Cable for Computer, Switch Box - First End: 1 x 25-pin DB-25 Female Serial - Second End: 1 x 25-pin DB-25 Female Serial - 9.8 kbit/s - Shielding - CL2 - 24 A

Black Box 75-ft RS232 Shielded Cable Metal Hood DB25 F/F 25Conductor - 75 ft Serial Data Transfer Cable for Computer, Switch Box - First End: 1 x 25-pin DB-25 Female Serial - Second End: 1 x 25-pin DB-25 Female Serial - 9.8 kbit/s - Shielding - CL2 - 24 AWG - TAA Compliant

NEC® CL2 compliant. For connecting computers inside a building. Not for use in risers or plenums. Low capacitance. All conductors are straight wired for connecting the serial output of your computer to a switch box. Male screw locks are standard. Perfect for industrial applications near heavy machinery or in environments with high EMI/RFI. ED/Q cable features a stranded twisted-pair construction covered with two shields. A shorted aluminum-foil shield attenuates high-frequency emmissions. A copper-braid shield attenuates low-frequency emissions.

Technical Specifications:
Cable Type: Serial
Cable Length: 75 ft
Connector Type on First End: DB-25 RS-232 Serial - Female
Connector on First End Details: 1 x 25-pin DB-25 RS-232 Serial - Female
Connector Type on Second End: DB-25 RS-232 Serial - Female
Connector on Second End Details: 1 x 25-pin DB-25 RS-232 Serial - Female
Features: Stranded, EMI/RF Protection, Molded, Non Removable Hood, Screw Lock
Shielding: Yes
Jacket Type: CL2
Device Supported: Computer, Switch Box
American Wire Gauge: 24 AWG
Data Transfer Rate: 9.8 kbit/s
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country of Origin: United States
TAA Compliant: Yes
