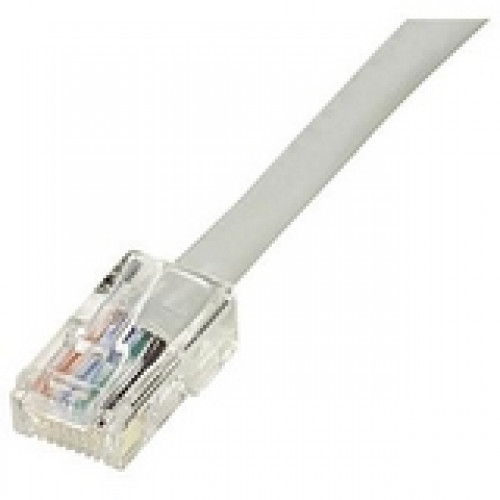

Black Box GigaTrue Cat. 6 Component UTP Patch Cable - RJ-45 Male - RJ-45 Male - 5ft - White EVNSL680-0005

Black Box GigaTrue Cat. 6 Component UTP Patch Cable - RJ-45 Male - RJ-45 Male - 5ft - White

Connectivity from the data center to the desktop, and beyond. For performance designed to last the lifetime of your cabling system, choose Black Box. You''ll get high-performance copper and fiber cabling solutions for structured cabling systems, data centers, industrial environments, multimedia systems, datacomm connections, and more, including custom cables.

Technical Specifications:
Cable Type: Category 6
Cable Characteristic: Patch Cable
Cable Length: 5 ft
Connector Type on First End: RJ-45 Network - Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Features: Stranded, Molded, Near End Cross Talk (NEXT)
Conductor: Copper
Shielding: No
Jacket Type: CM
Device Supported: Patch Panel, Wallplate, Network Device
American Wire Gauge: 24 AWG
Data Transfer Rate: 1 Gbit/s
Boot Type: Snagless
Product Color: White
Jacket Material: Polyvinyl Chloride (PVC)
Additional Information: Perfect for full broadband and baseband video, Meets or exceeds all crosstalk and return loss specifications, Full Power Sum performance, Provides full-duplex operation, Meets balance requirements (LCL/LCTL), Improved attenuation provides cleaner data and video transmissions, Attenuation: 23.9 dB at 100 MHz, 39.6 dB at 250 MHz, Cable Diameter: 0.22", Delay Skew (Maximum): 25 ns/100 m (328 ft.), Impedance: 100 ± 15 Ohms at 1-250 MHz, Mutual Capacitance: 56 pF/m (maximum), NEXT: 44.3 dB at 100 MHz, 38.3 dB at 250 MHz, PS-NEXT:42.3 dB at 100 MHz, 36.3 dB at 250 MHz, Resistance (Maximum): 9.38 ohms/100 m (328 ft.)

Applications:

1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI
Certifications & Standards:

EIA/TIA-568-B.2-1

Country of Origin: China
