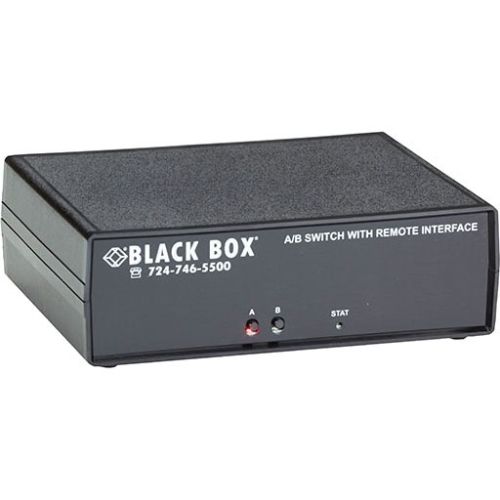

Black Box Remotely Controlled Layer 1 A/B Switch - DB9 - 3 x Serial Port - TAA Compliance SW1047A

Black Box Remotely Controlled Layer 1 A/B Switch - DB9 - 3 x Serial Port - TAA Compliance

DB9 A/B SWITCH LATCHING CONTROL

Technical Specifications:
Input Connector Type: Serial
Number of Serial Ports: 3
Height: 2.5"
Width: 6.3"
Depth: 8.1"
Weight (Approximate): 4 lb
Additional Information:

Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDC, Switching Speed Typical: 5 msec; Maximum: 10 msec

Connectors:

A/B switch ports: (3) DB9 F, Serial control port: DB9 F, Remote control/status port: (1) 6-position terminal block, Power: (1) 2.1 x 5.5-mm power input

Certifications & Standards:

CE, FCC

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
