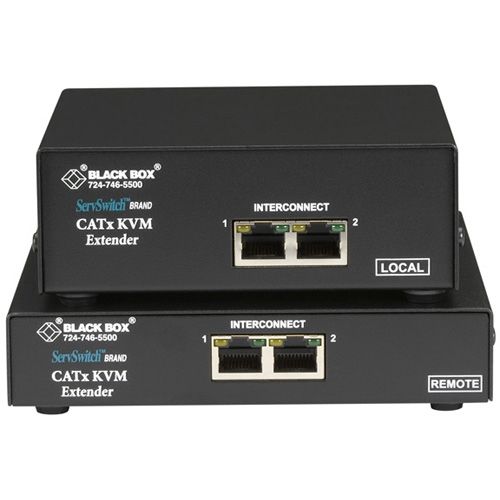

Black Box ServSwitch ACU6201A KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft Range - UXGA - 1600 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 6 x VGA - 9 V DC Input Voltage - Rack-mountable, Desktop - 1U - TAA Compliance

SServSwitch ACU6201A KVM Console/Extender send VGA video and signals for USB keyboards, mice, and other human interface devices (HID) up to 1000 feet (300 m) over ordinary CAT5, CAT5e, or CAT6 cable. ServSwitch ACU6201A Console/Extender delivers crystal-clear video and features emulated DDC on the local unit to ensure compatibility with multihead graphics cards. The remote unit features transparent DDC, reading DDC tables from all attached monitors, then transferring and storing data in the local unit to support non-standard displays.

Technical Specifications:
Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 1
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 1000 ft
Graphic Mode: UXGA
Maximum Video Resolution: 1600 x 1200
Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 6
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 5
Input Voltage: 9 V DC
Rack Height: 1U
Form Factor: Rack-mountable, Desktop
Transmitter Height: 4.90"
Transmitter Width: 4.50"
Transmitter Depth: 1.70"
Receiver Height: 5.70"
Receiver Width: 5.90"
Receiver Depth: 1.70"
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: United Kingdom
