Brainboxes 2 Port RS422/485 PCI Express Serial Card With Opto Isolation - Plug-in Card - PCI Express x1 - PC - 2 x Number of Serial Ports External - TAA Compliant PX-310

Brainboxes 2 Port RS422/485 PCI Express Serial Card With Opto Isolation - Plug-in Card - PCI Express x1 - PC - 2 x Number of Serial Ports External - TAA Compliant

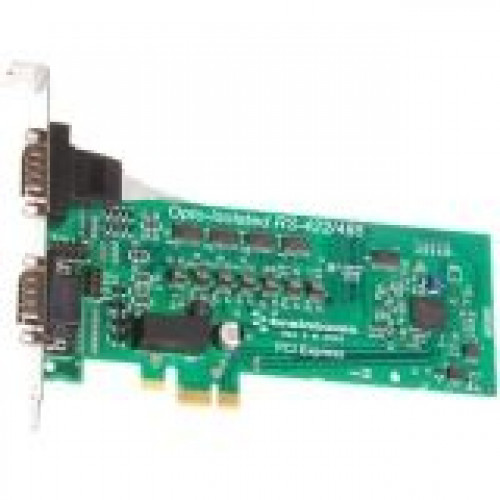

PCI Express Card providing two opto isolated RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmitand 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Optical isolation provides greater protection from electrical current surges to both the card itself and the PC. It improves noise immunity by isolating the PC from the card''s transmit ground. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.

Technical Specifications:
Host Interface: PCI Express x1
Data Transfer Rate: 921.6kB/s
Platform Supported: PC
Number of Serial Ports (External): 2
Form Factor: Plug-in Card
Height: 4.7"
Width: 0.7"
Depth: 6.4"
Length: 6.4"
Weight (Approximate): 2.93 oz
Package Contents: PCIe 2xRS422/485 1MBaud Opto Isolated, Installation CD Including Manual, Microsoft Signed Drivers & Utilities
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
