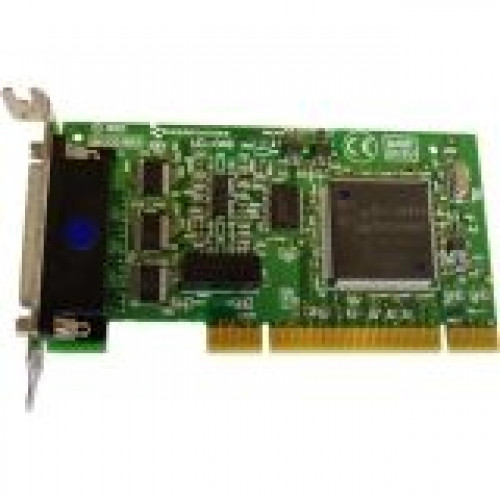

Brainboxes 4 Port Low Profile RS232 PCI Serial Card Opto Isolated TX,RX,GND,CTS & RTS - Low-profile Plug-in Card - PCI 3.0 - PC - TAA Compliant - RoHS, WEEE Compliance UC-061

Brainboxes 4 Port Low Profile RS232 PCI Serial Card Opto Isolated TX,RX,GND,CTS & RTS - Low-profile Plug-in Card - PCI 3.0 - PC - TAA Compliant - RoHS, WEEE Compliance

Universal PCI providing four low profile RS232 serial ports with Opto Isolation on TX, RX, GND, CTS & RTS lines. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Technical Specifications:
Host Interface: PCI 3.0
Data Transfer Rate: Up to 921.6kB/s
UART Type: 16C958, 16750, 16550, 16450
Platform Supported: PC
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 3.1"
Width: 0.7"
Depth: 5.3"
Weight (Approximate): 2.61 oz
Package Contents:

4 Port Low Profile RS232 PCI Serial Card Opto Isolated TX,RX,GND,CTS & RTS, Installation CD Including Manual, Microsoft Signed Drivers & Utilities

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United Kingdom
TAA Compliant: Yes
