Brainboxes LP PCIe 1+1xRS232 POS 1A IDE - Low-profile Plug-in Card - PCI Express x1 - PC - 1 x Number of Serial Ports Internal - 1 x Number of Serial Ports External - TAA Compliant - RoHS, WEEE Compliance PX-809

Brainboxes LP PCIe 1+1xRS232 POS 1A IDE - Low-profile Plug-in Card - PCI Express x1 - PC - 1 x Number of Serial Ports Internal - 1 x Number of Serial Ports External - TAA Compliant - RoHS, WEEE Compliance

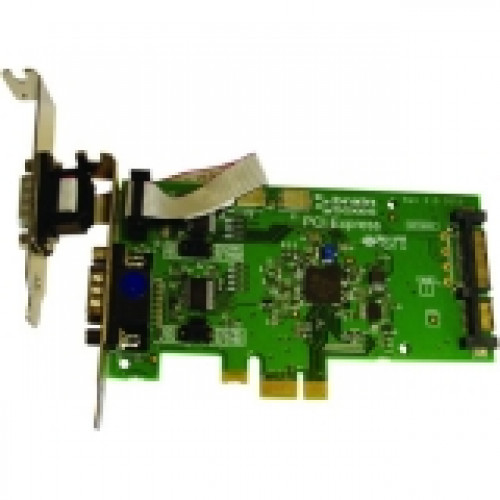

Low profile PCI Express Card providing two powered RS232 serial ports. Board gives first serial port on the bracket, with a second serial port on a fly lead. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Up to 1 Amp selectable power provided through pins 1 and 9 to attached peripherals. The extra power necessary is supplied to the PCI express card directly from the PC power supply unit through a Serial ATA (SATA) power connector: a neat, clean and green solution. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.

Technical Specifications:
Host Interface: PCI Express x1
Data Transfer Rate: Up to 921.6kB/s Serial Port
Platform Supported: PC
Number of Serial Ports (Internal): 1
Number of Serial Ports (External): 1
Form Factor: Plug-in Card
Card Height: Low-profile
Weight (Approximate): 1.98 oz
Package Contents: LP PCIe 1+1xRS232 POS 1A IDE, Installation CD Including Manual, Microsoft Signed Drivers & Utilities
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: United Kingdom
TAA Compliant: Yes
