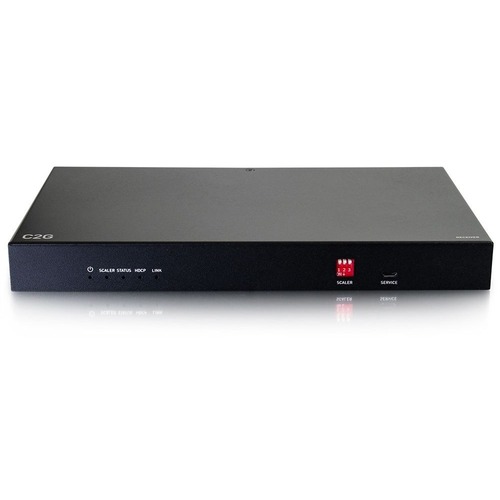

C2g HDMI + RS232 + IR 4K Scaling RX Box - 1 Output Device - 328 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI Out - 4K UHD - Twisted Pair - Category 7 30016

C2G HDMI + RS232 + IR 4K Scaling RX Box - 1 Output Device - 328 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI Out - 4K UHD - Twisted Pair - Category 7

The HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 328ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. This scaling receiver accepts HDMI signals over a single network patch cable. Extend 4K HDMI up to 230 feet and 1080p up to 328 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 328 feet using a Cat6a cable. This HDMI HDBaseT receiver is HDCP 2.2 compliant, making sure that the connection from the source is secure. The S/PDIF output allows for the de-embedding of a connected audio device. One-way PoC provides power to the transmitter with PD module via Cat cable, so no additional power adapter is required, allowing for greater flexibility in installations. The USB Micro-B input supports necessary firmware updates. Advanced users can control bi-directional IR and device control through the RS232 port. The RS232 controller has pre-loaded power on/off/standby commands and auto trigger for the display device.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 328 ft
Graphics Modes: 4K UHD
Network (RJ-45): Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 7
Product Color: Black
Receiver Height: 0.98"
Receiver Width: 9.21"
Receiver Depth: 5.64"
Receiver Weight (Approximate): 2.01 lb
Country of Origin: China
