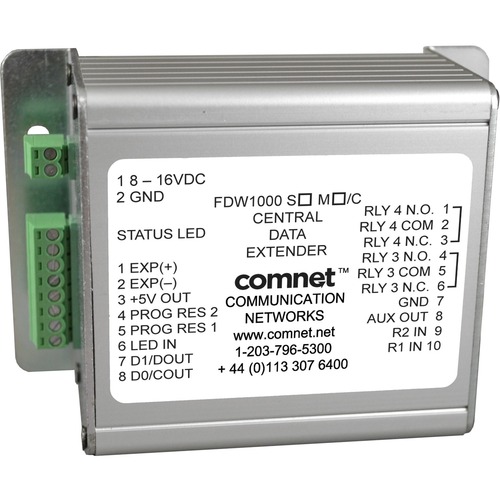

Comnet Optical Wiegand Extender, Central Unit - Shelf Mountable, Surface-mountable for Control Panel, Door, Gate, Expansion Module - Rugged Aluminum - TAA Compliance FDW1000M/C

The ComNet FDW1000 data extenders provide optical connectivity between one card reader and its associated door or gate locking hardware, to any Wiegand, MagStripe, or F/2F-based control panel. The connection is completely supervised and secure, and a pair of these units will support a single locking gate or door and its associated reader using two multimode or singlemode optical fibers. When used with the ComNet EXP-100 Expansion Module, up to 7 gates or doors and readers may be integrated onto the same network. A service mode provides easy and fast set-up and configuration when the EXP-100 is used, and user selection of the reader formats via DIP-switch setting is included. An auxiliary I/O (input/output) interface is available for determining door, gate, and control panel status and signaling, and a relay interface provides the door strike or gate activation functions. These extenders are designed for long-term, reliable operation in harsh industrial environments, and a fault-specific LED indicator is provided for rapidly ascertaining the operating status of the extender and the link. Packaged in a rugged aluminum housing, the FDW1000 is designed for shelf or surface mounting. The FDW1000 series are supplied as a remote unit for door or gate locations, and a central unit for control panel installation.FEATURES Wiegand, MagStripe, or F/2F-based reader formats/control panel-compatible. Completely supervised and secure operation Service mode provides simple and fast system set-up and configuration DIP-switch selection of the desired reader format Auxiliary I/O (input/output) interface is available for ascertaining door, gate, and control panel status and signaling. Relay interface provides door strike or gate activation functions. LED fault-specific status indicator for rapidly determining the operating status of the extender and the link. Voltage transient/surge protected. Small size: Ideal for use in those installations where space is at a premium. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required. Lifetime warranty Made in the USA
