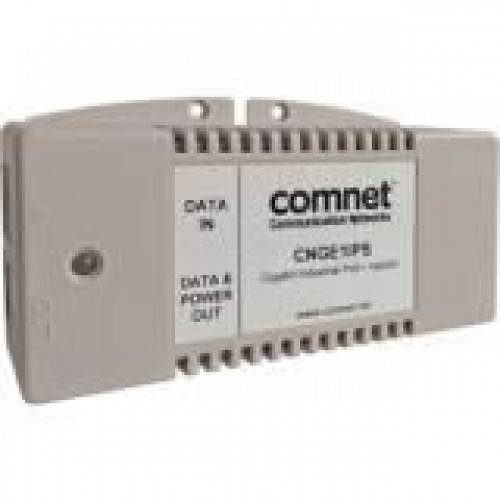

Comnet Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X) - 120 V AC, 230 V AC Input - 56 V DC, 625 mA Output - 1 10/100/1000Base-T Input Port(s) - 1 10/100/1000Base-T Output Port(s) - 30 W - DIN Rail/Wall Mountable - TAA Compliance CNGE1IPS

ComNet Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X) - 120 V AC, 230 V AC Input - 56 V DC, 625 mA Output - 1 10/100/1000Base-T Input Port(s) - 1 10/100/1000Base-T Output Port(s) - 30 W - DIN Rail/Wall Mountable - TAA Compliance

The ComNet™ CNGE1IPS is an industrial power over Ethernet (PoE+) midspan injection module that injects 56 VDC at 0.625 amperes to any network cable. Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. The CNGE1IPS is fully compliant with the requirements of IEEE 802.3at for Power Sourcing Equipment (PSE), and features auto detection of powered devices (PDs). Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for all PDs drawing a maximum of 30 watts. The unit provides AC line and powered device over-voltage and short circuit protection. Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CNGE1IPS is a true plug-and-play product requiring no user configuration or other set-up.
