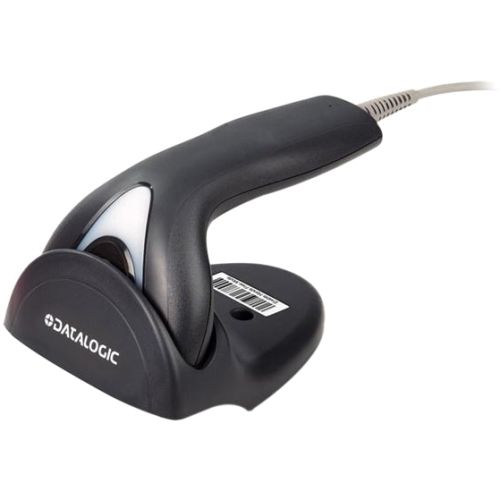

Datalogic General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit - Cable Connectivity - 1D - Imager, Linear - Omni-directional - Black - TAA Compliance TD1120-BK-90K1

Datalogic General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit - Cable Connectivity - 1D - Imager, Linear - Omni-directional - Black - TAA Compliance

The Touch™ TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.

Technical Specifications:
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Stacked Codes:

GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Image Sensor Type: Imager, Linear
Maximum Scan Resolution: 4 mil
Depth of Field: 0" - 3.2"@7.5mil - Code 39, 0" - 4.7"@10mil - Code 39, 0" - 6"@13mil - EAN13
Scan Pattern: Omni-directional
Scanner Range: Short Range
Scanning Distance: 5.91"
Cable Type Included: USB
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 20000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 7.5 mil
Maximum Element Resolution (Code 39): 10 mil
Host Interface: USB
Form Factor: Handheld
Product Color: Black
Height: 6.7"
Width: 2.7"
Depth: 4.1"
Weight (Approximate): 5.40 oz
Additional Information:

USB Cable separate

Ingress Protection (IP) Rating: IP30
Application/Usage: Library, Government, Industrial, Retail
Country of Origin: Vietnam
