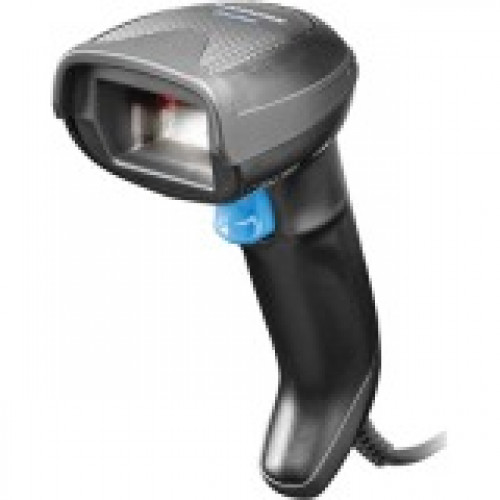

Datalogic Gryphon GD4520 Handheld Barcode Scanner Kit - Cable Connectivity - 1D, 2D - Imager - TAA Compliance GD4520-HCK1

Datalogic Gryphon GD4520 Handheld Barcode Scanner Kit - Cable Connectivity - 1D, 2D - Imager - TAA Compliance

IMAGING TECHNOLOGY The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance. TOP TECHNOLOGIES FOR TODAY''S POS Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic''s Motionix™ motionsensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user''s desired preferences. Datalogic distinctive reading technology with highly visible white-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer''s center cross provides a locator for targeted scanning in a multiple bar code environment. SIMPLE TO USE AND DEPLOY The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

Technical Specifications:
Connectivity Technology: Cable
Scanning Capability: 1D, 2D
Barcode Symbology Supported: 1D:

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D:

Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code

Postal Codes:

Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)

Stacked Codes:

EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites

Digital Watermarking:

Digimarc Barcodes

Image Sensor Type: Imager
Scanner Range: High Density
Scanning Distance: 27.95"
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 35 in/s
Image Formats: JPEG, TIFF, BMP
Maximum Ambient Light: 100000 lux
Drop Specification: Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil
Maximum Element Resolution (Code 39): 10 mil
Minimum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (DataMatrix): 15 mil
Minimum Element Resolution (PDF417): 10 mil
Host Interface: USB
Form Factor: Handheld
Product Color: White, Green
Height: 3.7"
Width: 4.3"
Length: 8.7"
Weight (Approximate): 5.68 oz
Ingress Protection (IP) Rating: IP52
Application/Usage: Industrial, Retail, Healthcare, Transportation
