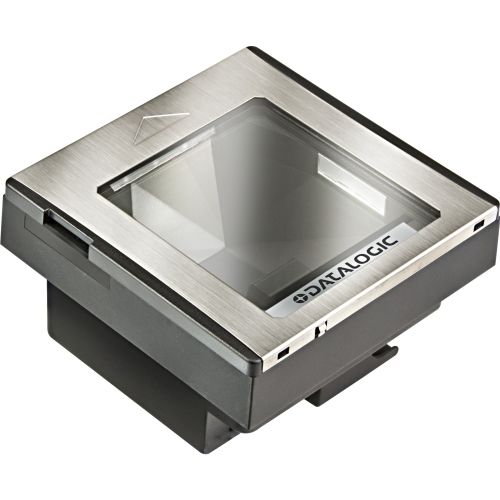

Datalogic Magellan 3300HSi In-Counter Bar Code Reader - Cable Connectivity - 4" Scan Distance - 1D - Imager - Omni-directional - China RoHS, RoHS, TAA Compliance M3301-010100

Datalogic Magellan 3300HSi In-Counter Bar Code Reader - Cable Connectivity - 4" Scan Distance - 1D - Imager - Omni-directional - China RoHS, RoHS, TAA Compliance

The Magellan 3300HSi bar code reader brings Datalogic''s new imaging technology to the high-volume point-of-sale. Along with the 3200VSi vertical reader, they are the first bar code scanners to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3300HSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Technical Specifications:
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D / Linear Codes:

Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

Aztec Code, Data Matrix, ECC200, MaxiCode, QR Code

Stacked Codes:

GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417
Image Sensor Type: Imager
Maximum Scan Resolution: 5 mil
Scan Pattern: Omni-directional
Scanning Distance: 4"
Host Interface: Keyboard Wedge, Serial, IBM 46XX, USB
Form Factor: In-counter
Height: 6"
Width: 6"
Depth: 3.4"
Weight (Approximate): 1.74 lb
Additional Information:

USB Cable separate

Environmentally Friendly: Yes
Environmental Certification: China RoHS, RoHS
