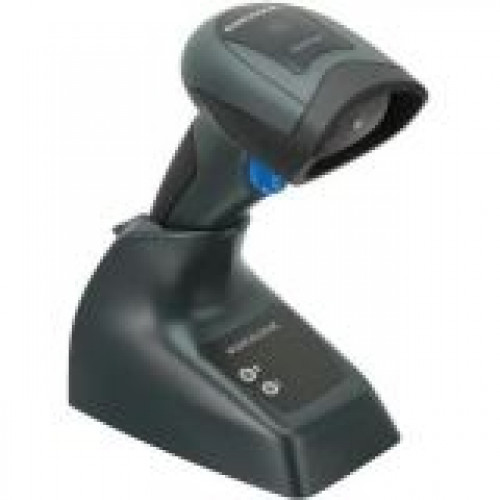

Datalogic QuickScan I QBT2430 Handheld Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - Imager - Omni-directional - Bluetooth - Black - TAA Compliance QBT2430-BK-BTK1

Datalogic QuickScan I QBT2430 Handheld Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - Imager - Omni-directional - Bluetooth - Black - TAA Compliance

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.

Technical Specifications:
Connectivity Technology: Wireless
Scanning Capability: 1D, 2D
Barcode Symbology Supported: 1D / Linear Codes:
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes2D Codes:
Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code, China Han Xin CodePostal Codes:
Australian Post, British Post, Canadian Post, China Post, IMB, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)Stacked Codes:
EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
Image Sensor Type: Imager
Maximum Scan Resolution: 4 mil
Depth of Field: 0.5cm - 15cm@5mil - Code 39, 0.5cm - 35cm@13mil - EAN/UPCA, 2cm - 15cm@6.6mil - PDF417, 2cm - 16cm@10mil - Data Matrix
Scan Pattern: Omni-directional
Scanning Distance: 13.78"
Cable Type Included: USB
Reading Angle (Skew): 60°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 25 in/s
Maximum Ambient Light: 100000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 5 mil
Maximum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (PDF417): 6.6 mil
Bluetooth: Yes
Host Interface: USB
Power Source: Battery
Battery Chemistry: Lithium Ion (Li-Ion)
Maximum Number of Scans per Full Charge: 30000
Battery Rechargeable: Yes
Form Factor: Handheld
Product Color: Black
Height: 6.4"
Width: 1.6"
Depth: 3.6"
Weight (Approximate): 7.05 oz
Additional Information:

USB Cable separate

Ingress Protection (IP) Rating: IP42
Application/Usage: Industrial, Retail
Country of Origin: Vietnam
