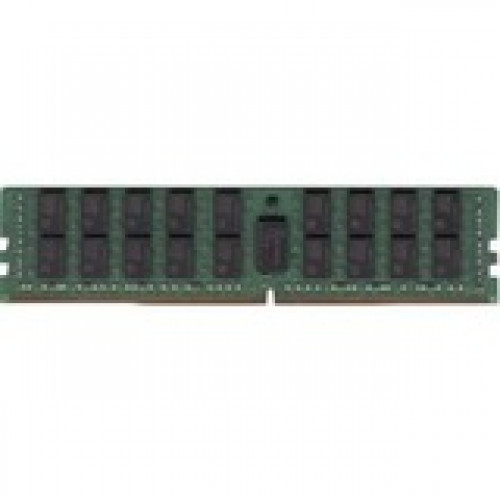

Dataram 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4-3200/PC4-25600 DDR4 SDRAM - CL22 - 1.20 V - ECC - Registered - 288-pin - DIMM DVM32R2T4/64G

Dataram 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4-3200/PC4-25600 DDR4 SDRAM - CL22 - 1.20 V - ECC - Registered - 288-pin - DIMM

DVM32R2T4/64G is a registered 8Gx72 memory module, which conforms to JEDEC''s DDR4- 3200AA, PC4-25600 standard. The assembly is Dual-Rank. Each rank is comprised of eighteen 4Gbx4 DDR4-3200 SDRAMs.One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C

Technical Specifications:
Memory Size: 64 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 64GB
Memory Speed: 3200 MHz
Memory Standard: DDR4-3200/PC4-25600
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL22
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
