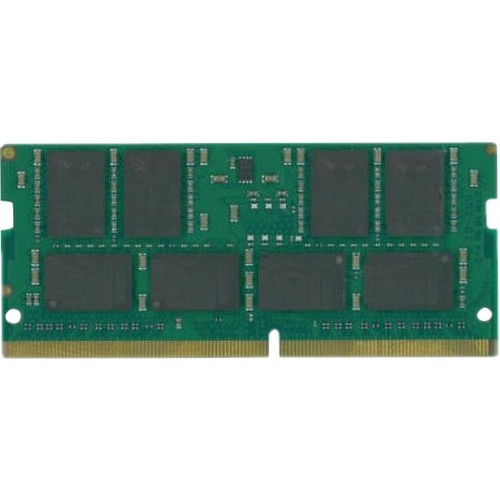

Dataram 16GB DDR4 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - CL18 - 1.20 V - Non-ECC - Unbuffered - 260-pin - SoDIMM DTM68607-M

Dataram 16GB DDR4 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - CL18 - 1.20 V - Non-ECC - Unbuffered - 260-pin - SoDIMM

DTM68607-M is a non-ECC Unbuffered small-outline 2Gx64 memory module, which conforms to JEDEC''s DDR4-2400, PC4- 2400 standard. The assembly is Dual-Rank containing: sixteen Micron 1GbMx8 DDR4- 2400 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

Technical Specifications:
Memory Size: 16 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 16GB
Memory Speed: 2400 MHz
Memory Standard: DDR4-2400/PC4-19200
Error Checking: Non-ECC
Signal Processing: Unbuffered
CAS Latency: CL18
Number of Pins: 260-pin
Form Factor: SoDIMM
Thickness: 145.7 mil
Width: 1.2"
Length: 2.7"
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE, REACH
