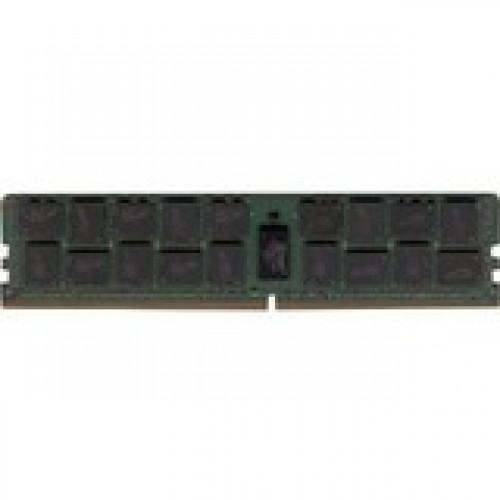

Dataram 16GB DDR4 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR4-2133/PC4-2133 DDR4 SDRAM - CL16 - 1.20 V - ECC - Registered - 288-pin - DIMM DTM68102H

Dataram 16GB DDR4 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR4-2133/PC4-2133 DDR4 SDRAM - CL16 - 1.20 V - ECC - Registered - 288-pin - DIMM

The DTM68102H is a registered 2Gx72 memory module, which conforms to JEDEC''s DDR4-2133, PC4-2133 standard. The assembly is Dual-Rank. Each rank is comprised of eighteen Micron 1Gbx4 DDR4-2133 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 16 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 16GB
Memory Speed: 2133 MHz
Memory Standard: DDR4-2133/PC4-2133
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL16
Device Supported: Server
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 156.7 mil
Width: 1.2"
Length: 5.3"
Compatibility:

Intel S2600CW Server Board

Environmentally Friendly: Yes
Environmental Certification: RoHS
