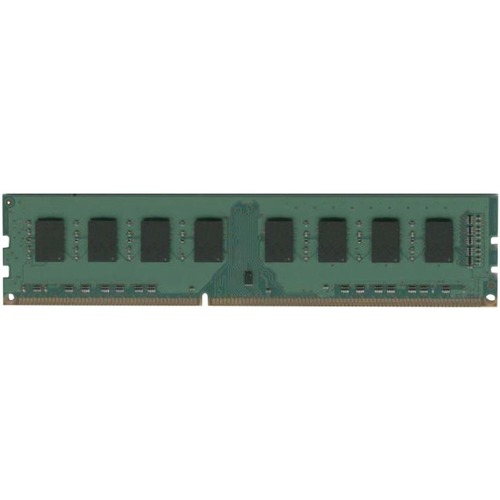

Dataram 2GB DDR3 SDRAM Memory Module - 2 GB - DDR3-1600/PC3-12800 DDR3 SDRAM - CL11 - 1.50 V - Non-ECC - Unbuffered - 240-pin - DIMM DVM16U1S8/2G

Dataram 2GB DDR3 SDRAM Memory Module - 2 GB - DDR3-1600/PC3-12800 DDR3 SDRAM - CL11 - 1.50 V - Non-ECC - Unbuffered - 240-pin - DIMM

DVM16U1S8/2G is an Unbuffered 256Mx64 memory module, which conforms to JEDEC''s DDR3, PC3-12800 standard. The assembly is single Rank. The rank is comprised of eight 256Mx8 DDR3 SDRAMs. One EEPROM is used for Serial Presence Detect. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

Technical Specifications:
Memory Size: 2 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.50 V
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3-12800
Error Checking: Non-ECC
Signal Processing: Unbuffered
CAS Latency: CL11
Number of Pins: 240-pin
Form Factor: DIMM
Thickness: 157.5 mil
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE, REACH
