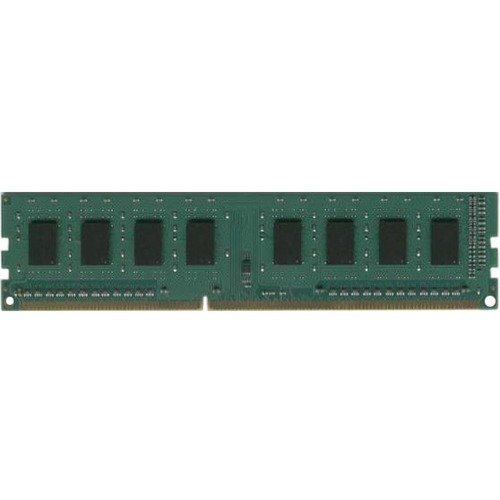

Dataram 4GB DDR3 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR3-1600/PC3L-12800 DDR3 SDRAM - 1.35 V - Non-ECC - Unbuffered - 240-pin - DIMM DTI16U1L8W/4G

Dataram 4GB DDR3 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR3-1600/PC3L-12800 DDR3 SDRAM - 1.35 V - Non-ECC - Unbuffered - 240-pin - DIMM

DTI16U1L8W/4G is an unbuffered 512Mx64 memory module, which conforms to JEDEC''s DDR3L, PC3L-12800 standard. The assembly is Single Rank. The rank is comprised of eight 512Mx8 DDR3 Industrial Temp SDRAMs.One EEPROM is used for Serial Presence Detect.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

Technical Specifications:
Memory Size: 4 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.35 V
Number of Modules: 1 x 4GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3L-12800
Error Checking: Non-ECC
Signal Processing: Unbuffered
Number of Pins: 240-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
