Dataram 4GB DDR3 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR3-1600/PC3L-12800 DDR3 SDRAM - CL11 - 1.35 V - ECC - Unbuffered - 240-pin - DIMM DTM64471C

Dataram 4GB DDR3 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR3-1600/PC3L-12800 DDR3 SDRAM - CL11 - 1.35 V - ECC - Unbuffered - 240-pin - DIMM

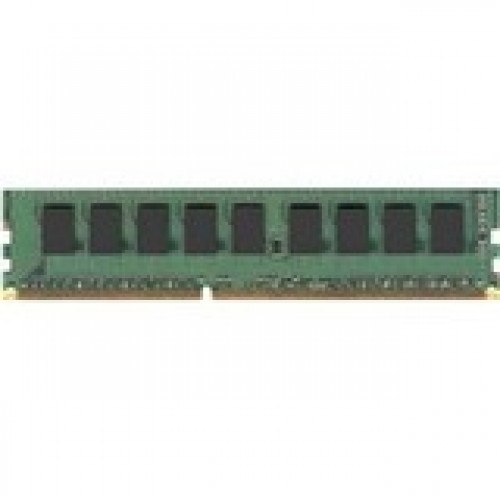

The DTM64471C is a low voltage, Unbuffered 512Mx72 memory module, which conforms to JEDEC''s DDR3L, PC3L-12800 standard. The assembly is single Rank containing nine SKHynix 512Mx8 DDR3L-1600 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals.

Technical Specifications:
Memory Size: 4 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.35 V
Number of Modules: 1 x 4GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3L-12800
Error Checking: ECC
Signal Processing: Unbuffered
CAS Latency: CL11
Device Supported: Server
Number of Pins: 240-pin
Form Factor: DIMM
Thickness: 133.9 mil
Width: 1.2"
Length: 5.3"
Compatibility:

Supermicro X10SAE Server MotherBoard

Environmentally Friendly: Yes
Environmental Certification: RoHS
