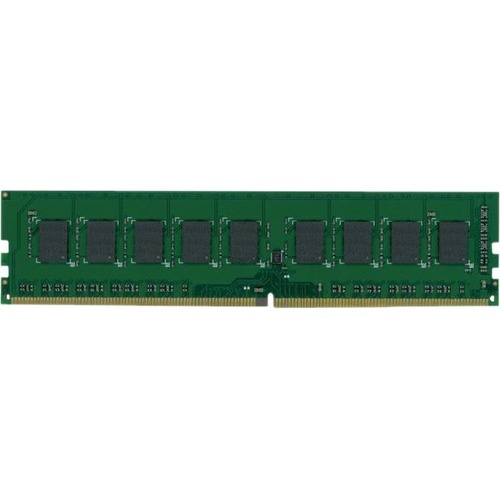

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR4-2133/PC4-17000 DDR4 SDRAM - CL16 - 1.20 V - ECC - Unbuffered - 288-pin - DIMM DTM68109-H

Dataram 4GB DDR4 SDRAM Memory Module - 4 GB (1 x 4 GB) - DDR4-2133/PC4-17000 DDR4 SDRAM - CL16 - 1.20 V - ECC - Unbuffered - 288-pin - DIMM

DTM68109-H is an Unbuffered 512Mx72 memory module, which conforms to JEDEC''s PC4-2133 standard. The assembly is single-rank containing - nine SKHynix 512Mx8 DDR4-2133 SDRAMs.One 2K-bit EEPROM is used for Serial Presence Detect.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

Technical Specifications:
Memory Size: 4 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 4GB
Memory Speed: 2133 MHz
Memory Standard: DDR4-2133/PC4-17000
Error Checking: ECC
Signal Processing: Unbuffered
CAS Latency: CL16
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 97.2 mil
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
