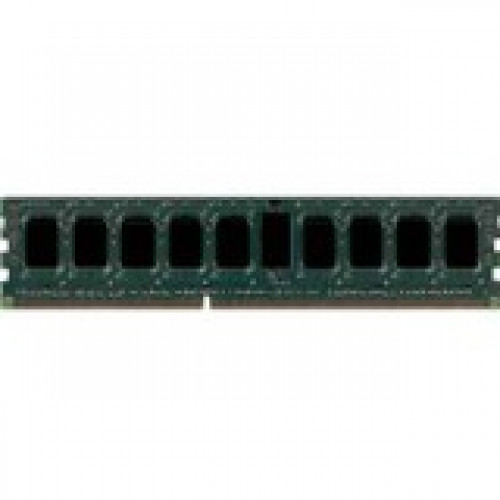

Dataram 8GB DDR3 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - CL11 - 1.50 V - ECC - Registered - 240-pin - DIMM DTM64397D

Dataram 8GB DDR3 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR3-1600/PC3-12800 DDR3 SDRAM - CL11 - 1.50 V - ECC - Registered - 240-pin - DIMM

DTM64397D is a registered 1Gx72 memory module, which conforms to JEDEC''s DDR3, PC3-12800 standard. The assembly is a Single-Rank containing - eighteen Samsung 1Gx4 DDR3 SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.50 V
Number of Modules: 1 x 8GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3-12800
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL11
Device Supported: Server
Number of Pins: 240-pin
Form Factor: DIMM
Thickness: 157.5 mil
Width: 1.2"
Length: 5.3"
Compatibility:

Intel S2600CO Server

Environmentally Friendly: Yes
Environmental Certification: RoHS
