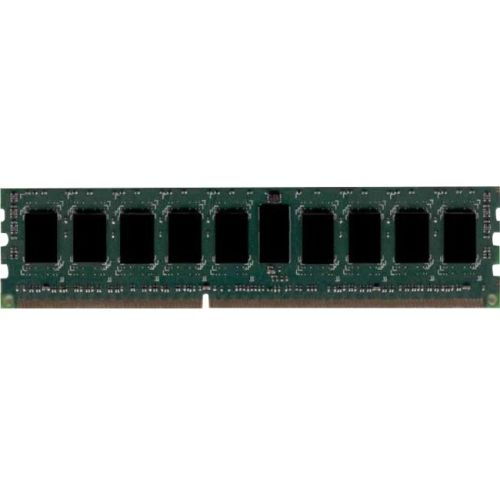

Dataram 8GB DDR3 SDRAM Memory Module - 8 GB - DDR3-1600/PC3-12800 DDR3 SDRAM - CL11 - 1.50 V - ECC - Registered - 240-pin - DIMM DVM16R1S4/8G

Dataram 8GB DDR3 SDRAM Memory Module - 8 GB - DDR3-1600/PC3-12800 DDR3 SDRAM - CL11 - 1.50 V - ECC - Registered - 240-pin - DIMM

DVM16R1S4/8G is a registered 1Gx72 memory module, which conforms to JEDEC''s DDR3-1600, PC3-12800 standard. The assembly is Single-Rank comprised of eighteen 1Gbx4 DDR3 SDRAMs. One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.50 V
Memory Standard: DDR3-1600/PC3-12800
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL11
Number of Pins: 240-pin
Form Factor: DIMM
Width: 5.3"
Length: 1.2"
Environmentally Friendly: Yes
Environmental Certification: RoHS
