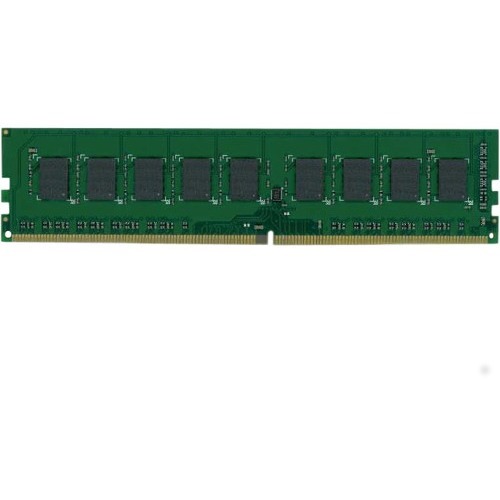

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4-2400/PC4-2400 DDR4 SDRAM - CL18 - 1.20 V - ECC - Unbuffered - 288-pin - DIMM DTI24E1T8W/8G

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8 GB) - DDR4-2400/PC4-2400 DDR4 SDRAM - CL18 - 1.20 V - ECC - Unbuffered - 288-pin - DIMM

DTI24E1T8W/8G is an Unbuffered 1Gx72 memory module, which conforms to JEDEC''s DDR4- 2400T, PC4-2400T standard. The assembly is Single-Rank, comprised of nine 1Gbx8 DDR4- 2400T Industrial Temperature Range SDRAMs. One EEPROM is used for Serial Presence Detect. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 8GB
Memory Speed: 2400 MHz
Memory Standard: DDR4-2400/PC4-2400
Error Checking: ECC
Signal Processing: Unbuffered
CAS Latency: CL18
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
