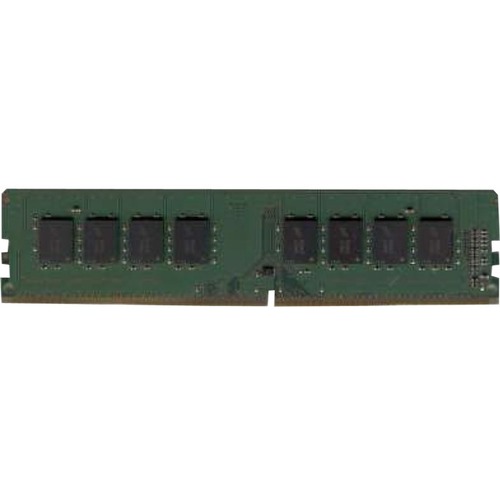

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8GB) - DDR4-2666/PC4-21333 DDR4 SDRAM - 2666 MHz Single-rank Memory - CL19 - 1.20 V - Non-ECC - Unbuffered - 288-pin - DIMM DTM68138-S

Dataram 8GB DDR4 SDRAM Memory Module - 8 GB (1 x 8GB) - DDR4-2666/PC4-21333 DDR4 SDRAM - 2666 MHz Single-rank Memory - CL19 - 1.20 V - Non-ECC - Unbuffered - 288-pin - DIMM

DTM68138-S is an Unbuffered 1Gx64 memory module, which conforms to JEDEC''s DDR4-2666V, PC4-2666V standard. The assembly is SingleRank, comprised of eight Samsung 1Gbx8 DDR4- 2666V SDRAMs. One EEPROM is used for Serial Presence Detect. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology

Technical Specifications:
Memory Size: 8 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 8GB
Memory Speed: 2666 MHz
Memory Standard: DDR4-2666/PC4-21333
Memory Rank: Single-rank
Error Checking: Non-ECC
Signal Processing: Unbuffered
CAS Latency: CL19
Number of Pins: 288-pin
Form Factor: DIMM
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
