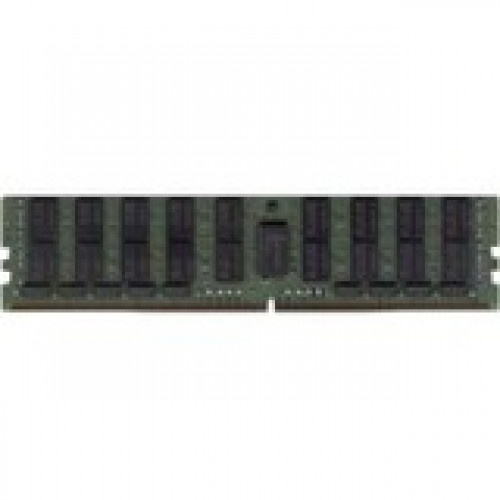

Dataram Value Memory 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4-2400/PC4-2400 DDR4 SDRAM - CL18 - 1.20 V - ECC - Registered - 288-pin - LRDIMM DVM24L4T4/64GB

Dataram Value Memory 64GB DDR4 SDRAM Memory Module - 64 GB (1 x 64 GB) - DDR4-2400/PC4-2400 DDR4 SDRAM - CL18 - 1.20 V - ECC - Registered - 288-pin - LRDIMM

DVM24L4T4/64GB is a load-reduced 8Gx72 memory module, which conforms to JEDEC''s DDR4-2400, PC4-2400 standard. The assembly is Quad-Rank. Each rank is comprised of nine 4Gbx4 DDR4-2400 SDRAMs. One EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 64 GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 64GB
Memory Speed: 2400 MHz
Memory Standard: DDR4-2400/PC4-2400
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL18
Number of Pins: 288-pin
Form Factor: LRDIMM
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
