Detail overview

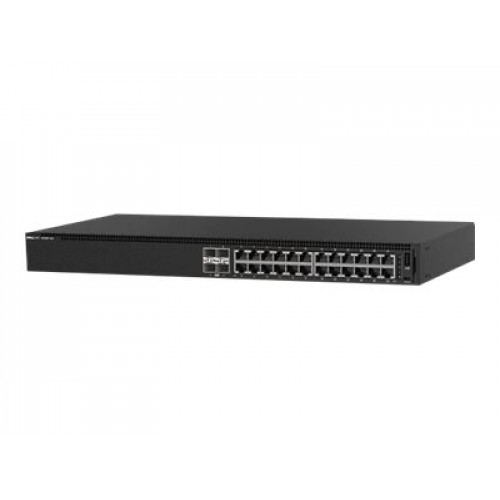

Dell X54df Emc Networking N1124p-on - Switch - 24 Ports - Managed - Rack-mountable :
Key Features :
Device Type : Switch - 24 Ports - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 (12 Poe+) + 4 X 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe+
Poe Budget : 190 W
Performance : Switching Fabric Bandwidth: 128 Gbps ¦ Forwarding Performance: 96 Mpps
Capacity : Mac Addresses: 16000 ¦ Aggregated Links (dynamic): 144 ¦ Lag Groups: 64 ¦ Queues Per Port: 8 ¦ Vlans Supported: 512 ¦ Arp Entries: 2048 ¦ Ndp Entries: 400 ¦ Max Acl Rules System-wide: 4000 ¦ Acl: 100 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 253
Mac Address Table Size : 16000 Entries
Routing Protocol : Igmpv2, Igmp, Igmpv3
Remote Management Protocol : Snmp 2, Snmp, Rmon, Telnet, Http, Tftp, Ssh-2
Encryption Algorithm : Aes, Ssl, Tls 1.0
Authentication Method : Radius, Tacacs+, Ldap
Features : Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Redundant Fans, Mac And Ip-based Acls Support, Time-controlled Acls Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
Ram : 1 Gb
Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces :
12 X Gigabit Lan Rj-45
12 X Gigabit Lan Rj-45 Poe+
4 X 10gbit Lan Sfp+
1 X Usb Type A
1 X Micro-usb
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Power Provided : 250 Watt
Power Consumption Operational : 249.6 Watt
