Detail overview

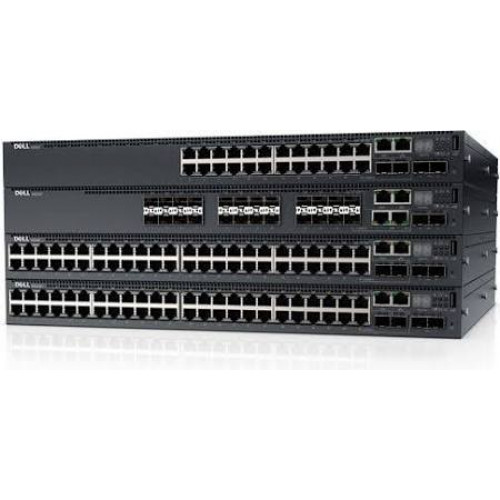

Dell 5t9wn Emc Networking N3048et-on - Switch - 48 Ports - Managed - Rack-mountable Switch.
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp
Performance : Switching Fabric Bandwidth: 260 Gbps ¦ Forwarding Performance: 193 Mpps ¦ Stacking Bandwidth: 21 Gbps
Capacity : Ipv4 Routes (static): 1024 ¦ Ipv6 Routes (static): 1024 ¦ Ipv4 Routes (dynamic): 8160 ¦ Ipv6 Routes (dynamic): 4096 ¦ Maximum Member Ports Per Lag: 8 ¦ Maximum Dynamic Ports Per Switch Stack: 144 ¦ Lag Groups: 128 ¦ Ospf Routes: 8160 ¦ Rip Routes: 512 ¦ Ecmp Next Hops Per Route: 4 ¦ Ecmp Groups: 64 ¦ Vlan Routing Interfaces: 128 ¦ Vlans Supported: 4094 ¦ Multicast Entries (ipv4): 1536 ¦ Multicast Entries (ipv6): 512 ¦ Arp Entries: 6144 ¦ Ndp Entries: 400 ¦ Acl: 100 ¦ Maximum Rules Per Acl: 1023 ¦ Max Acl Rules System-wide: 4096 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Vlan Interfaces With Acls Applied: 24
Mac Address Table Size : 32k Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Http, Tftp, Ssh-2
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Mdi/mdi-x Switch, Auto-negotiation, Arp Support, Vlan Support, Port Mirroring, Diffserv Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Management Information Base (mib), Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Neighbor Discovery Protocol (ndp), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az, Ieee 802.3ax
Ram : 2 Gb
Flash Memory : 1 Gb
Expansion / Connectivity
Interfaces : 48 X Gigabit Lan Rj-45 ¦ 2 X 10gbit Lan Sfp+ ¦ 2 X Gigabit Lan Rj-45/sfp ¦ 1 X Serial (rs-232) Rj-45 Management ¦ 1 X Usb Type A ¦ 2 X Network Stack Device
Power
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (with Optional Power Supply)
Power Provided : 200 Watt
