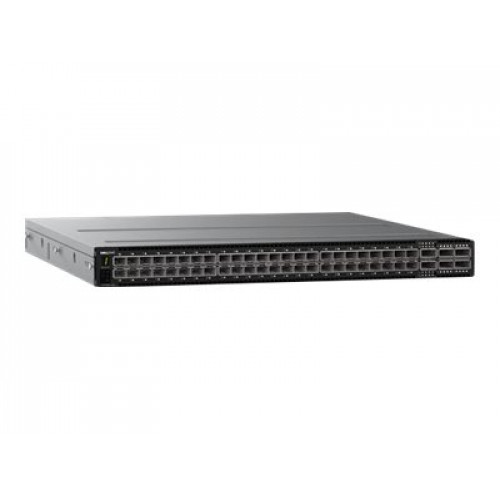

DELL EMC Networking Switch L3 Managed 48 X 25 Gigabit Sfp28 + 4 X 100 Gigabit Qsfp28 + 2 X 200 Gigabit Qsfp28-dd Rack-mountable S5248F-ON-RA

DELL EMC Networking Switch L3 Managed 48 X 25 Gigabit Sfp28 + 4 X 100 Gigabit Qsfp28 + 2 X 200 Gigabit Qsfp28-dd Rack-mountable S5248F-ON-RA
Brand: Dell
Part Number: S5248F-ON-RA
MSRP: $4,380.99
Availability: 10 or more
Condition: Refurbished
Price: $3,650.40
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Dell Emc Networking S5248f-on-ra Switch - L3 - Managed - 48 X 25 Gigabit Sfp28 + 4 X 100 Gigabit Qsfp28 + 2 X 200 Gigabit Qsfp28-dd - Rack-mountable :

General Description :

  • Device Type : Switch - 48 Ports - L3 - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 25 Gigabit Ethernet
  • Ports : 48 X 25 Gigabit Sfp28 + 4 X 100 Gigabit Qsfp28 + 2 X 200 Gigabit Qsfp28-dd
  • Performance : Switching Capacity: 2 Tbps
  • Capacity : Mac Addresses: 160000 ¦ Arp Entries: 128000 ¦ Ipv4 Routes: 128000 ¦ Ipv6 Routes : 64000 ¦ Multicast Hosts: 32000 ¦ Link Aggregation Groups: 16 ¦ Layer 2 Vlans: 4000 ¦ Mstp Instances: 64
  • Routing Protocol : Ospf, Bgp-4, Ospfv2, Ospfv3, Policy-based Routing (pbr)
  • Remote Management Protocol: Snmp 1, Snmp 2, Tftp, Ssh-2, Cli, Scp
  • Encryption Algorithm : Md5
  • Authentication Method : Radius, Tacacs
  • Features: Flow Control, Arp Support, Port Mirroring, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Front To Back Airflow, Lacp Support, Lldp Support, Network Access Control (nac), Priority-based Flow Control (pfc), Internet Control Message Protocol (icmp), Dns Client, Vlan Tagging
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1t, Ieee 802.1ab (lldp), Ieee 802.1qbb, Ieee 802.1qaz
  • Ram: 16 Gb
  • Built-in Devices: 32 Gb Ssd

    Expansion / Connectivity :
    Interfaces :
  • 48 X 25gbit Lan Sfp28
  • 4 X 100gbit Lan Qsfp28
  • 2 X 200gbit Lan Qsfp28-dd
  • 1 X Serial (rs-232) Rj-45 Management

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 2 (installed) / 2 (max)
  • Power Redundancy : Yes
  • Voltage Required : Ac 120/230 V (50/60 Hz)
  • Power Consumption Operational : 400 Watt
