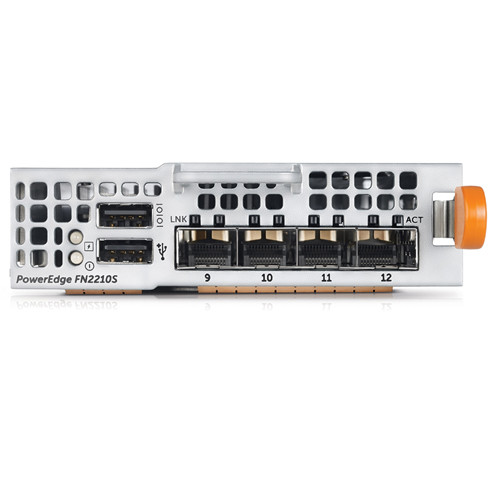

DELL I/o Module Provides Up To Two Ports Of 2/4/ 8gbit/s Fc Two Ports Of Sfp+ 10gbe Connectivity Provides Ethernet Connectivity Supports Optical And Dac Cable Media FN2210S

Detail overview

Product Details:

Description: dell Fn2210s I/o Module Provides Up To Two Ports Of 2/4/ 8gbit/s Fc Two Ports Of Sfp+ 10gbe Connectivity Provides Ethernet Connectivity Supports Optical And Dac Cable Media.

Technical Information:

Standalone Mode (smux): This Is The Factory Default Mode For The Iom. Smux Is A Fully Automated Zero-touch Mode That Allows Vlan Memberships To Be Defined On The Server-facing Ports While All Upstream Ports Are Configured In Port Channel 128. Administrators Cannot Modified This Setting.

Vlt Mode : This Low-touch Mode Automates All Configurations Except Vlan
membership. Port 9 Is Dedicated To The Vlt Interconnect In This Mode.

Programmable Mux Mode(pmux): Pmux Mode Provides Operational Flexibility By Allowing The Administrator To Create Multiple Link Aggregation Groups(lags), Configure Vlans On Uplinks,and Configure Data Center Bridging(dcb)parameters On The Server-facing Ports.

Stacking Mode: Stacking Mode Combines Multiple Switches To Make A Single Logical Switch Which Is Managed By A Designated Master Unit In The Stack. This
mode Simplifies Management And Redundant Configurations.

Full Switch Mode:full Switch Mode Makes All Switch Features Available. This Mode Requires The Most Configuration But Allows For The Most Flexibility And Customization.
