Detail overview

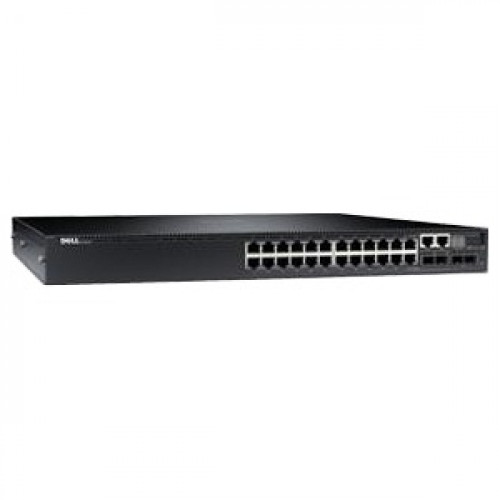

Dell - N3024 Managed L3 Switch - 24 Ethernet Ports & 2 10-gigabit Sfp+ Ports & 2 Combo 1000base-t Ports (ky73y).
Key Features :
Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable - 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo 1000base-t
Performance : Switching Fabric Bandwidth : 212 Gbps Forwarding Performance : 158 Mbps Stacking Bandwidth : 84 Gbps
Capacity : Mac Addresses : 16384 Ipv4 Routes (static) : 1024 Ipv6 Routes (static) : 1024 Ipv4 Routes (dynamic) : 8160 Ipv6 Routes (dynamic) : 4096 Maximum Member Ports Per Lag : 8 Maximum Dynamic Ports Per Switch Stack : 144 Lag Groups : 128 Ospf Routes : 8160 Rip Routes : 512 Ecmp Next Hops Per Route : 4 Ecmp Groups : 64 Vlan Routing Interfaces : 128 Vlans Supported : 4094 Multicast Entries (ipv4) : 512 Multicast Entries (ipv6) : 256 Arp Entries : 6144 Ndp Entries : 400 Acl : 100 Maximum Rules Per Acl : 1023 Max Acl Rules System-wide : 4096 Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1024 Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 3072 Maximum Acl Rules Per Interface (ipv6) Egress Rules : 512 Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 1021 Maximum Vlan Interfaces With Acls Applied : 24
Mac Address Table Size : 16k Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Flow Control, Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Port Forwarding, Lldp Support, Link Aggregation Control Protocol (lacp), Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Tagged Vlan, Generic Vlan Registration Protocol (gvrp), Redundant Fans, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az
Ram : 1 Gb
Flash Memory : 256 Mb
Expansion / Connectivity :
Interfaces : 24 X Gigabit Lan - Rj-45 2 X 10gbit Lan - Sfp+ 2 X Gigabit Lan - Rj-45 1 X Serial (rs-232) - Rj-45 - Management 1 X Usb - Type A 2 X Network Stack Device
Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Provided : 200 Watt
Power Consumption Operational : 52.8 Watt
