Detail overview

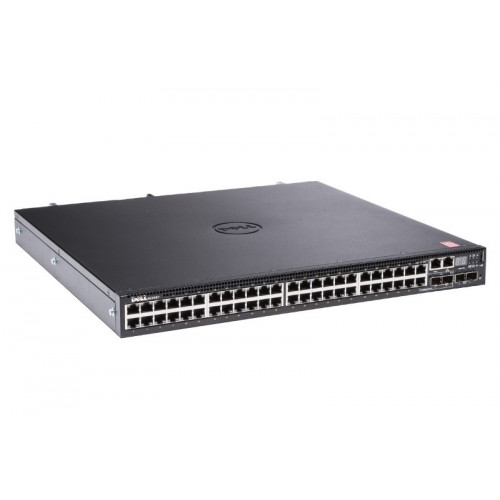

Dell - Networking N3048p Switch - 48 Ports - L3 - Managed Switch (e06w002).
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo 1000base-t
Power Over Ethernet (poe) : Poe+
Performance : Switching Fabric Bandwidth : 260 Gbps ¦ Forwarding Performance : 193 Mbps ¦ Stacking Bandwidth : 84 Gbps
Capacity : Mac Addresses : 16384 ¦ Ipv4 Routes (static) : 1024 ¦ Ipv6 Routes (static) : 1024 ¦ Ipv4 Routes (dynamic) : 8160 ¦ Ipv6 Routes (dynamic) : 4096 ¦ Maximum Member Ports Per Lag : 8 ¦ Maximum Dynamic Ports Per Switch Stack : 144 ¦ Lag Groups : 128 ¦ Ospf Routes : 8160 ¦ Rip Routes : 512 ¦ Ecmp Next Hops Per Route : 4 ¦ Ecmp Groups : 64 ¦ Vlan Routing Interfaces : 128 ¦ Vlans Supported : 4094 ¦ Multicast Entries (ipv4) : 512 ¦ Multicast Entries (ipv6) : 256 ¦ Arp Entries : 6144 ¦ Ndp Entries : 400 ¦ Acl : 100 ¦ Maximum Rules Per Acl : 1023 ¦ Max Acl Rules System-wide : 4096 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1024 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 3072 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules : 512 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 1021 ¦ Maximum Vlan Interfaces With Acls Applied : 24
Mac Address Table Size : 16k Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
Features : Flow Control, Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Load Balancing, Port Mirroring, Stackable, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Port Forwarding, Stp Root Guard, Lldp Support, Link Aggregation Control Protocol (lacp), Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Tagged Vlan, Generic Vlan Registration Protocol (gvrp), Redundant Fans, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az
Power Redundancy : Optional
