DELL Networking Switch 24 Ports Managed Rack-mountable N1524

DELL Networking Switch 24 Ports Managed Rack-mountable N1524
Brand: Dell
Part Number: N1524
MSRP: $1,678.99
Availability: 10 or more
Condition: New
Price: $1,398.60
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

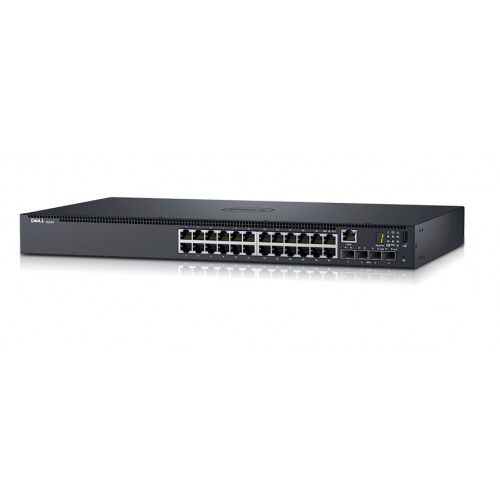

Dell Networking N1524 - Switch - 24 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 24 Ports - L2+ - Managed - Stackable
  • Enclosure Type : Rack-mountable - 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Sfp+
  • Performance : Switching Fabric Bandwidth : 128 Gbps ¦ Forwarding Performance : 128 Mpps
  • Capacity : Virtual Interfaces (vlans) : 512 ¦ Arp Entries : 1024 ¦ Ndp Entries : 400 ¦ Priority Queues Per Port : 8 ¦ Ipv4 Routes (static) : 256 ¦ Ipv6 Routes (static) : 128 ¦ Ipv4 Routes (dynamic) : 256 ¦ Vlan Routing Interfaces : 128 ¦ Acl : 100 ¦ Max Acl Rules System-wide : 2048 ¦ Maximum Rules Per Acl : 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules : 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules : 1023 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules : 512 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules : 509 ¦ Maximum Vlan Interfaces With Acls Applied : 24 ¦ Maximum Dynamic Ports Per Switch Stack : 144 ¦ Maximum Member Ports Per Lag : 8 ¦ Mac Addresses : 16000
  • Mac Address Table Size : 16000 Entries
  • Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing, Static Ipv6 Routing
  • Remote Management Protocol : Telnet, Tftp
  • Encryption Algorithm : Md5, Aes, Ssl, Tls
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Auto-negotiation, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Broadcast Storm Control, Redundant Fans
  • Ram : 1 Gb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
    Interfaces :
  • 24 X Gigabit Lan - Rj-45
  • 4 X 10gbit Lan - Sfp+
  • 1 X Serial (rs-232) - Rj-45 - Management
  • 1 X Usb - Type A
  • 2 X Network Stack Device

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 1
  • Power Provided : 40 Watt
  • Power Consumption Operational : 30.2 Watt
