Detail overview

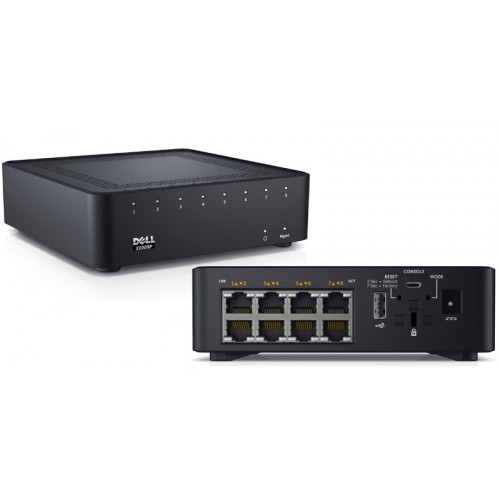

Dell F6x02 Networking X1008p - Switch - 8 Ports - Managed :
Key Features :
Device Type : Switch - 8 Ports - L2+ - Managed
Subtype : Gigabit Ethernet
Ports : 8 X 10/100/1000
Power Over Ethernet (poe) : Poe
Performance : Switching Fabric Bandwidth : 16 Gbps ¦ Forwarding Performance : 11.9 Mpps
Capacity : Mac Addresses : 16000 ¦ Lag Groups : 12 ¦ Priority Queues Per Port : 4 ¦ Virtual Interfaces (vlans) : 4096 ¦ Maximum Member Ports Per Lag : 8
Mac Address Table Size : 16k Entries
Remote Management Protocol : Snmp 1, Snmp 2, Rmon, Snmp 3, Http, Cli
Authentication Method : Radius, Tacacs+
Features : Auto-negotiation, Vlan Support, Syslog Support, Port Mirroring, Broadcast Storm Control, Ipv6 Support, Sntp Support, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Cable Test (vct) Technology, Multiple Spanning Tree Protocol (mstp) Support, Dhcp Snooping, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Mld Snooping, Uni-directional Link Detection (udld), Dns Server, Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (lacp), Snmp Trap, Static Routing, Garp Vlan Registration Protocol (gvrp), Snmp Support, Arp Inspection, Head Of Line Blocking Prevention, Back Pressure Support, Proprietary Protocol Filtering
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp)
Expansion / Connectivity :
Interfaces :
8 X 1000base-t - Poe
1 X Usb - Type A - Management
1 X Micro-usb - Management
