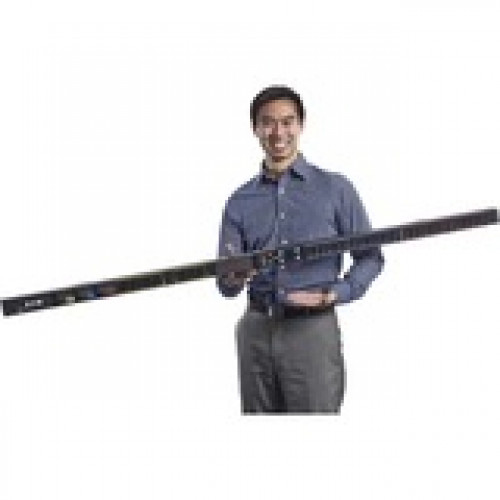

Eaton ePDU Metered 60-Outlet PDU - IEC 60309 460P9 - 48 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 17.30 kW - Network (RJ-45) - 0U - Vertical - Rack Mount - TAA Compliance EMI338-06

Eaton ePDU Metered 60-Outlet PDU - IEC 60309 460P9 - 48 x IEC 60320 C13, 12 x IEC 60320 C19 - 230 V AC - 17.30 kW - Network (RJ-45) - 0U - Vertical - Rack Mount - TAA Compliance

Eaton Metered Input ePDUsEaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

Technical Specifications:
Plug/Connector Type: IEC 60309 460P9
Plug/Connector Detail: 1 x IEC 60309 460P9
Receptacle Type: IEC 60320 C13, IEC 60320 C19
Receptacle Detail: 48 x IEC 60320 C13, 12 x IEC 60320 C19
Input Voltage: 230 V AC
Power Rating (Watt): 17.30 kW
Input Current: 48 A
Network (RJ-45): Yes
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Height: 63.2"
Width: 4.2"
Depth: 2.1"
Country of Origin: United States
