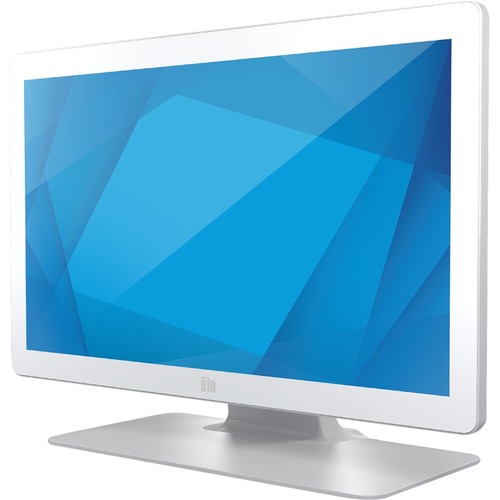

Elo 2203LM 21.5" LCD Touchscreen Monitor - 16:9 - 14 ms - 22" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 225 Nit - Speakers - HDMI - USB - V

Elo 2203LM 21.5" LCD Touchscreen Monitor - 16:9 - 14 ms - 22" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 225 Nit - Speakers - HDMI - USB - VGA - White - RoHS, China RoHS, WEEE, REACH - 3 Year - TAA Compliance

DICOM Medical Grade Touchscreen Monitors The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. IP-54 Rating Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution. IEC 60601 IEC 60601 compliant power supply included. DICOM 14 Ensures accurate and uniform image reproduction for reliable review. Integrated Touch TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves. Built-to-Last Backed by Elo''s 3-year standard warranty with optional EloCare service offerings. Easy to Clean Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays. DICOM 14 -Designed for Consistent Image Review Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve. Enhancing Clinical Workflow with Touch From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience. Purpose-built for Healthcare The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers. Medical Device Ready With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical. Configurability Made Easy | Flexible Mounting Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Technical Specifications:
Screen Size Class: 22"
Viewable Screen Size: 21.5"
Screen Mode: Full HD
Panel Technology: Thin Film Transistor (TFT)
Response Time: 14 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Arm-mountable, Wall Mountable, Cart Mountable, Shelf Mount, Pole Mount
Features: Anti-glare, On-screen Display (OSD), Privacy Filter
Horizontal Frequency: 30 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Maximum Resolution: 1920 x 1080
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 225 Nit
Speakers: Yes
Touchscreen Type: TouchPro Projected Capacitive
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10
HDMI: Yes
USB: Yes
VGA: Yes
Number of USB Ports: 4
Operating Power Consumption: 16.05 W
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Product Color: White
Height with Stand: 15.11"
Width with Stand: 20.74"
Depth with Stand: 7.61"
Weight (Approximate): 10.47 lb
Weight with Stand (Approximate): 14.88 lb
Package Contents:

2203LM 22" Medical Grade Touchscreen Monitor, Quick Install Guide, 3 x Tie Wraps, VGA Cable, HDMI Cable, Touch USB Cable, Audio Cable, Power Brick (E323104), NA Power Cable, EEI Label, DICOM Calibration Sheet

Environmentally Friendly: Yes
Environmental Certification: RoHS, China RoHS, WEEE, REACH
Country of Origin: China
